Automatic Gate Opener Installation in Hollywood

Installing an automatic gate opener in Hollywood involves distinct challenges, from steep hillside driveways in the Hollywood Hills to high-traffic residential streets near Sunset Strip and Los Feliz. Ensuring that a gate operates smoothly requires matching the motor capacity directly to property grading, gate mass, and local safety mandates. According to the U.S. Consumer Product Safety Commission (CPSC) National Electronic Injury Surveillance System (NEISS), which uses a national probability sample to estimate product-related emergency room visits, automatic gates account for approximately 300 emergency room injuries nationwide each year. Proper mechanical setup and code compliance are essential to keeping properties secure and residents safe.^[1]

Professional automatic gate opener installation, replacement, and repair services are available from specialists like Mega Gate Repair Hollywood across Hollywood and surrounding Los Angeles neighborhoods, where technicians typically evaluate gate structure, terrain grade, and power requirements to install systems designed for long-term operation.^[3]

Overview: Gate Opener Installation Essentials

Key project details: Automatic gate opener installation costs span a broad range depending on motor capacity, slope grading, power availability, access accessories, and site complexity. Installations must comply with UL 325 and ASTM F2200 entrapment protection standards as well as Los Angeles Fire Department (LAFD) emergency access regulations, which require gates to open within 10 seconds during an override and remain operable during power outages.^[4]

Engineering for Hollywood Driveways: Slopes and Canyon Conditions

Standard flat-ground manufacturer weight charts often fall short on Hollywood properties. Driveways built into canyon roads, such as those throughout Beachwood Canyon, Outpost Estates, and Nichols Canyon, often present severe inclines that exert continuous gravitational back-torque on gate operators.

• Gravitational back-torque on swing gates: When a swing gate opens uphill, the motor must continuously push against the physical weight of the gate panel throughout its arc. This requires heavy-duty hydraulic operators or high-torque linear actuators with positive mechanical internal stops rather than standard light-duty electromechanical arms.
• Sloped sliding gate tracks: Sliding gates installed on an incline require specialized braking mechanisms and heavy-duty gearboxes to prevent free-wheeling and uncontrolled closure, which can destroy the motor’s internal gears.
• Thermal and environmental exposure: Canyon microclimates experience dry summer heat followed by damp coastal marine layers. Motor housings require weather-sealed enclosures to protect electronic control boards from condensation, corrosion, and high thermal stress.

What Does Automatic Gate Opener Installation Cost in Hollywood?

Installation pricing depends on gate size, material (such as solid wood, modern horizontal slats, or heavy wrought iron), trenching distances for electrical wiring, and the specific motor type selected.

Key Cost Factors

• Gate style and weight: Dual swing gates require two coordinated motors and synchronized wiring, while heavy slide gates require heavy-duty chain or rack-and-pinion drives.
• Electrical infrastructure: Bringing a dedicated 120V or 240V circuit to the gate line may require concrete cutting, asphalt sawing, or ground trenching. Solar-powered setups with battery banks provide an alternative when grid power is far from the driveway entrance.
• Access controls and security hardware: Adding digital keypads, telephone entry intercoms, ground vehicle loops, safety photo eyes, and wireless smartphone control units increases the equipment total.

The City of Los Angeles publishes building-permit records through the Department of Building and Safety (LADBS), allowing property owners to verify records when adding permanent electrical structures. County-level housing permit trends for Los Angeles County are tracked nationally by FRED using Census-derived building permit series, reflecting residential improvements and infrastructure updates across the region.^[2]

Types of Automatic Gate Openers and Leading Brands

Choosing the correct motor configuration depends on the physical clearance and traffic load of your property:

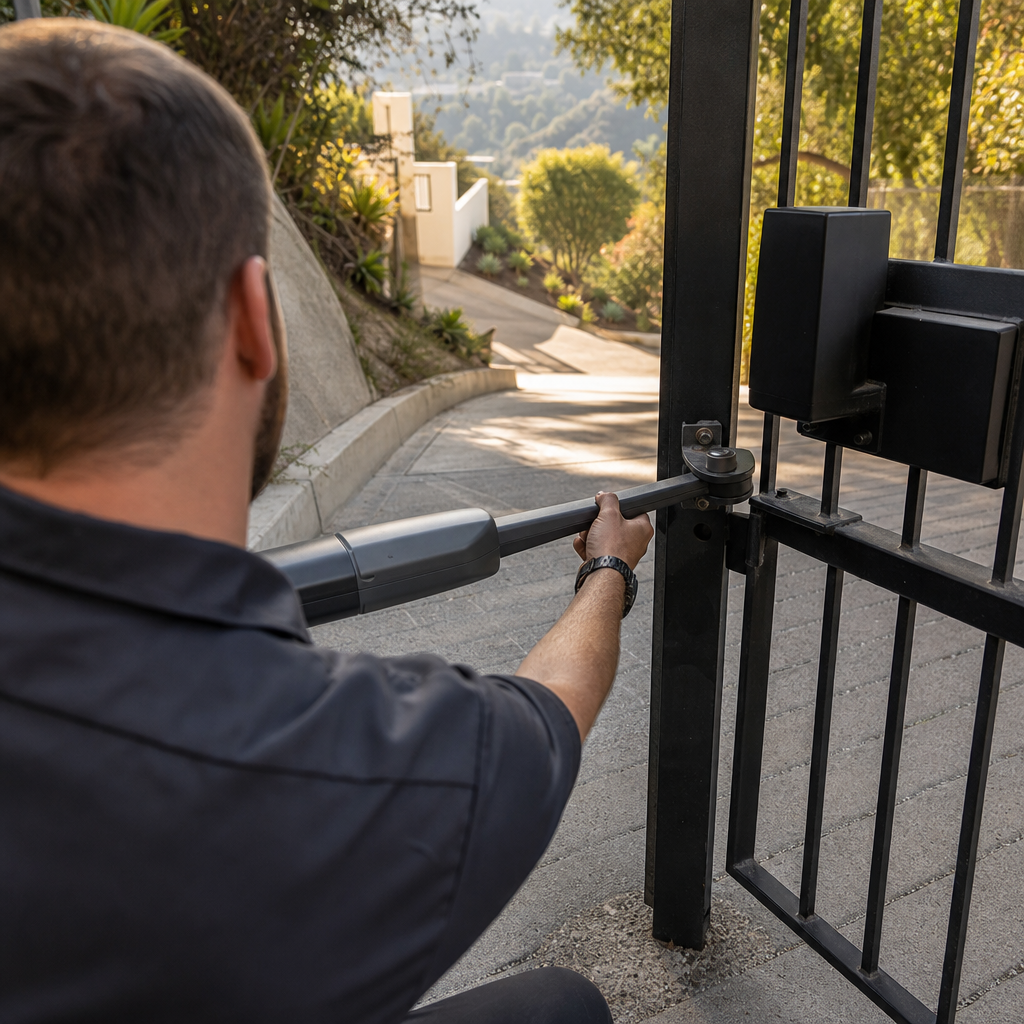

• Linear actuator swing motors: Compact arms mounted directly to the gate post and frame, well-suited for single-family residential homes with clean sightlines.
• Articulated arm operators: Ideal for wide masonry or brick columns where standard linear actuators cannot achieve the proper geometric mounting angle.
• Hydraulic swing operators: Built for high-wind areas and heavy ornamental iron gates, offering smooth operation and extended duty cycles under continuous load.
• Slide gate operators: Compact pad-mounted units running chain-driven or rack-and-pinion systems, ideal for properties with short driveways where swing leaves would block parking space.

Commonly installed brands across the industry include LiftMaster, DoorKing (DKS), FAAC, Viking Access Systems, and HySecurity, which technicians at Mega Gate Repair Hollywood regard as dependable options for component availability and parts support.

Safety Codes, UL 325 Standards, and LAFD Rules

Every automated gate installation must follow established safety standards to prevent mechanical entrapment and ensure emergency vehicle entry.

Entrapment Protection (UL 325 and ASTM F2200)

Automated gate installations must comply with UL 325 and ASTM F2200 entrapment protection standards. Safety systems generally incorporate primary internal motor reversal sensors and secondary external devices such as monitored retro-reflective photo eyes, through-beam optical sensors, or contact safety edges along potential pinch points.

Los Angeles Fire Department (LAFD) Requirements

The City of Los Angeles enforces fire access guidelines for residential and commercial secured entryways:

1. Rapid emergency override: Automated gates across fire access roads must open fully within 10 seconds when triggered by emergency override devices, such as a Knox key switch or emergency strobe receiver.
2. Power failure operation: In the event of a municipal blackout or electrical outage, gates must feature a battery backup or fail-safe release mechanism that unlocks or opens the gate for emergency responders.

Can You Add an Automatic Opener to an Existing Manual Driveway Gate?

According to specialists at Mega Gate Repair Hollywood, most existing manual swing and sliding gates can be automated, provided the structural foundation is in good condition. An automated motor applies direct mechanical torque to the gate leaf; if the gate drags, binds, or sags, the motor will experience premature failure.

Pre-Automation Inspection Checklist

• Support posts: Steel or reinforced wood posts must be plumb and solidly set in deep concrete footings without shifting or wobbling.
• Hinges and rollers: Heavy-duty sealed ball-bearing hinges or heavy-gauge V-groove track rollers must move freely by hand with minimal effort.
• Frame rigidity: The gate frame must be rigid enough to handle the push and pull forces of an automatic operator arm without twisting or bending. Mounting plates are often welded or bolted directly to reinforced cross members.

Frequently Asked Questions About Gate Opener Installation in Hollywood

How much does automatic gate opener installation cost in Hollywood?

Automatic gate opener installation costs span a broad range depending on the gate dimensions, motor capacity, access accessories, and site conditions. Total pricing varies considerably based on whether complex hillside grading, dual-gate synchronization, or electrical trenching is necessary.

What type of automatic gate opener is best for my driveway gate?

As technicians at Mega Gate Repair Hollywood note, if your driveway slopes upward toward your house, a sliding gate or an articulated arm swing operator with a heavy-duty hydraulic rating is typically best. For flat driveways with standard clearance, a linear actuator or pad-mounted slide motor provides reliable, quiet daily operation.

Can you add an electric opener to an existing manual gate?

Yes. As long as the gate swings or slides smoothly by hand and the support posts are solidly anchored, a motor and access control system can be mounted directly to the existing structure.

How long does it take to install an automatic gate opener?

Installation timing varies by project complexity. A direct replacement on an existing, well-aligned gate may take only a few hours, whereas projects requiring extensive trenching, electrical conduit runs, or new concrete mounting pads will take longer.

Do I need a city permit to install an automated gate opener in Hollywood, CA?

The City of Los Angeles publishes building and electrical permit records through the Department of Building and Safety (LADBS), where property owners and contractors can review permit guidelines and historical records for electrical and structural work.^[5]

Which gate opener brands are most reliable for residential and commercial properties?

Installers often express preferences for brands such as LiftMaster, DoorKing (DKS), FAAC, Viking, and HySecurity based on the gate type, usage frequency, and specific property requirements.

How do I schedule an installation or site evaluation?

Property owners can contact a local gate automation professional like Mega Gate Repair Hollywood to evaluate driveway slope, review gate dimensions, and receive an estimate for installation.

Sources

1. CPSC NEISS On-Line Query System | CPSC.gov – cpsc.gov (2026)
2. Building and Safety – Building Permits Issued from 2020 to … – catalog.data.gov (2026)
3. CPSC's National Electronic Injury Surveillance System … – catalog.data.gov (2026)
4. [PDF] 2015 Annual Report – Consumer Product Safety Commission – cpsc.gov (2015)
5. New Private Housing Structures Authorized by Building … – fred.stlouisfed.org (2026)

Automatic Gate Opener Installation in Nearby Cities

We also serve the communities around Hollywood:

• Automatic Gate Opener Installation in Los Angeles
• Automatic Gate Opener Installation in Beverly Hills
• Automatic Gate Opener Installation in Fairfax
• Automatic Gate Opener Installation in Koreatown
• Automatic Gate Opener Installation in Los Feliz
• Automatic Gate Opener Installation in Mid-City
• Automatic Gate Opener Installation in Mid-Wilshire
• Automatic Gate Opener Installation in North Hollywood

Frequently Asked Questions

Can a solar-powered gate opener handle steep Hollywood canyon driveways?

Solar-powered operators work reliably on hillside properties when configured with high-output solar panels and heavy-duty battery banks capable of handling high gravitational back-torque. Mega Gate Repair Hollywood evaluates property sun exposure and motor draw to match the ideal solar configuration to your specific gate weight and slope.

How do I ensure my new automatic gate meets LAFD emergency access rules?

To satisfy Los Angeles Fire Department guidelines, your system must include an integrated battery backup and an approved override device, such as a Knox key switch or optical strobe sensor, that opens the gate within 10 seconds. Technicians from Mega Gate Repair Hollywood integrate and test these safety mechanisms during installation to ensure complete municipal code compliance.

What structural upgrades are required before automating an existing manual gate?

Manual gates often require welded steel mounting plates, reinforced post footings, or heavy-duty sealed ball-bearing hinges to withstand continuous motor torque without sagging. Homeowners can contact Mega Gate Repair Hollywood to schedule a free on-site estimate to inspect their existing gate foundation and determine if reinforcement is needed before setup.
